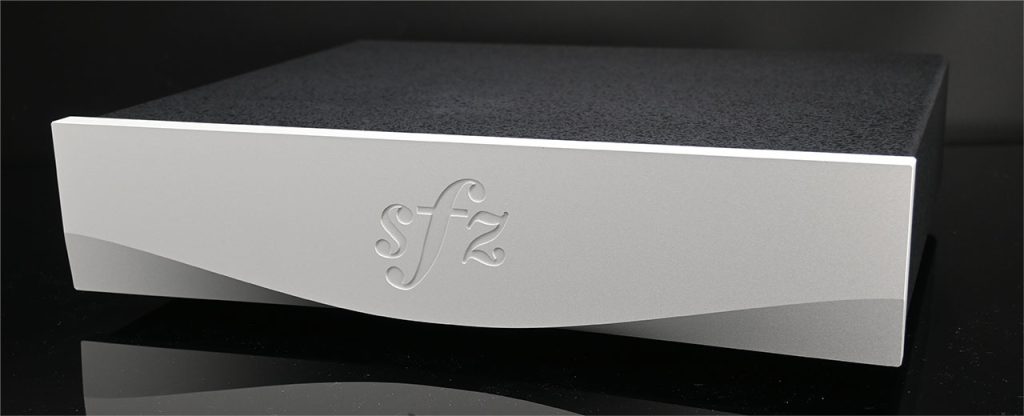

■ Ultra low phase noise 10MHz master clock generator All digital audio equipment performs D/A conversion at clock timing. The quality of the clock directly affects the sound quality. Connecting a high-performance master clock brings about an overwhelming improvement in sound quality. PMC-07EX provides ultra high performance 10MHz master clock for D/A conversion. It brings completely natural, wide and deep sound stage and quite focused sound image.
■ High performance Clock Unit The PMC-07EX incorporates an Oven-Controlled Crystal Oscillator (OCXO) boasting ultra-low phase noise and ultra-short-term stability.
■ Powerful Power Supply The PMC-07EX features a powerful power supply utilizing a large toroidal transformer and high-capacity electrolytic capacitors. Its discrete feedback power supply delivers precise and stable power to the clock oscillator.
■ Powerful Buffer Circuit The output from the clock generator is delivered with precise 50Ω impedance via a discrete buffer circuit.
■ Clock Unit Vibration Isolation The clock unit is not fixed to the enclosure, but is mounted on the bottom plate of the enclosure by spikes. Vibrations from the enclosure are not transmitted to the clock generator, supporting high-quality clock transmission.

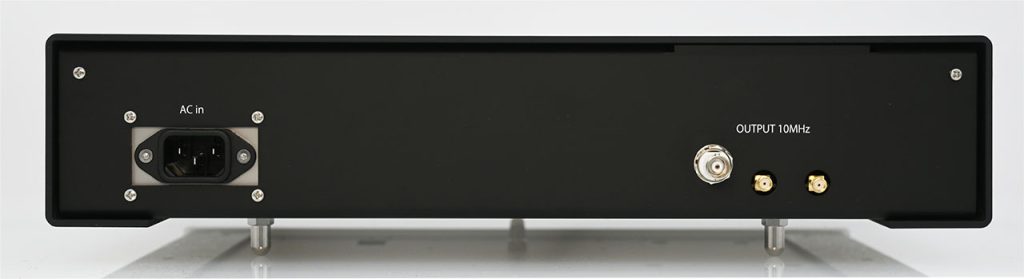

■ Three output terminals PMC-07EX has one BNC and two SMA 50ohm output. Output signal is square wave.
